Vaccum Oven
FEATURES & BENEFITS
- Vacuum ovens are designed in both rectangular and square chamber and round chamber
- A vacuum oven must be made rugged and leak proof
- The vacuum is achieved better than -750mmHg or 28 psi
- he door is also made of thick gauge of steel with toughened glass and durable clamp to close the door
- The temperature range of standard vacuum oven is ambient+10°C to 200°C
- We offer several optional accessories with our vacuum ovens such as oil free vacuum pump
| Model | Dimensions (W x D x H) | Dimensions (W x H x D) | Volume |
|---|---|---|---|
| STXRVO8 | 8 x 8 x 8 Inch | 200 x 200 x 200 mm | 8 Liters |
| STXRVO28 | 12 x 12 x 12 Inch | 300 x 300 x 300 mm | 28 Liters |
| STXRVO45 | 14 x 14 x 14 Inch | 355 x 355 x 355 mm | 45 Liters |
| STXRVO95 | 18 x 18 x 18 Inch | 455 x 455 x 455 mm | 95 Liters |
| STXRVO127 | 18 x 18 x 24 Inch | 455 x 455 x 609 mm | 127 Liters |
| STXRVO226 | 24 x 24 x 24 Inch | 609 x 609 x 609 mm | 226 Liters |
Vacuum Oven is used for drying heat sensitive materials such as powder to extract moisture. As vacuum drying lowers the boiling point; therefore, losses of compounds other than water are minimized. Samples are dried under gentle heating leaving almost no residue. Some applications of vacuum oven include moisture content determination, dry sterilization, purification and out gassing of solids etc.We are vacuum oven manufacturers and suppliers in India.
In our factory, these ovens are made in both rectangular and cylindrical (round) shapes with temperature range up to 150°C (200°C optional). Each unit delivers excellent durability for long run. Below are vacuum oven technical specifications, please read them and find the one that fits your needs and contact our sales team to finalize the purchase process. If there is something missing, please share your requirement with our technical team, we also make customized large vacuum ovens at competitive price in India.
| Construction | Economy Models |
|---|---|
| Chamber design | Round and Rectangular |
| Vacuum range | Up to -760 mmHg |
| Temperature range | Ambient+5°C to 200°C |
| Temperature sensor | PT100 |

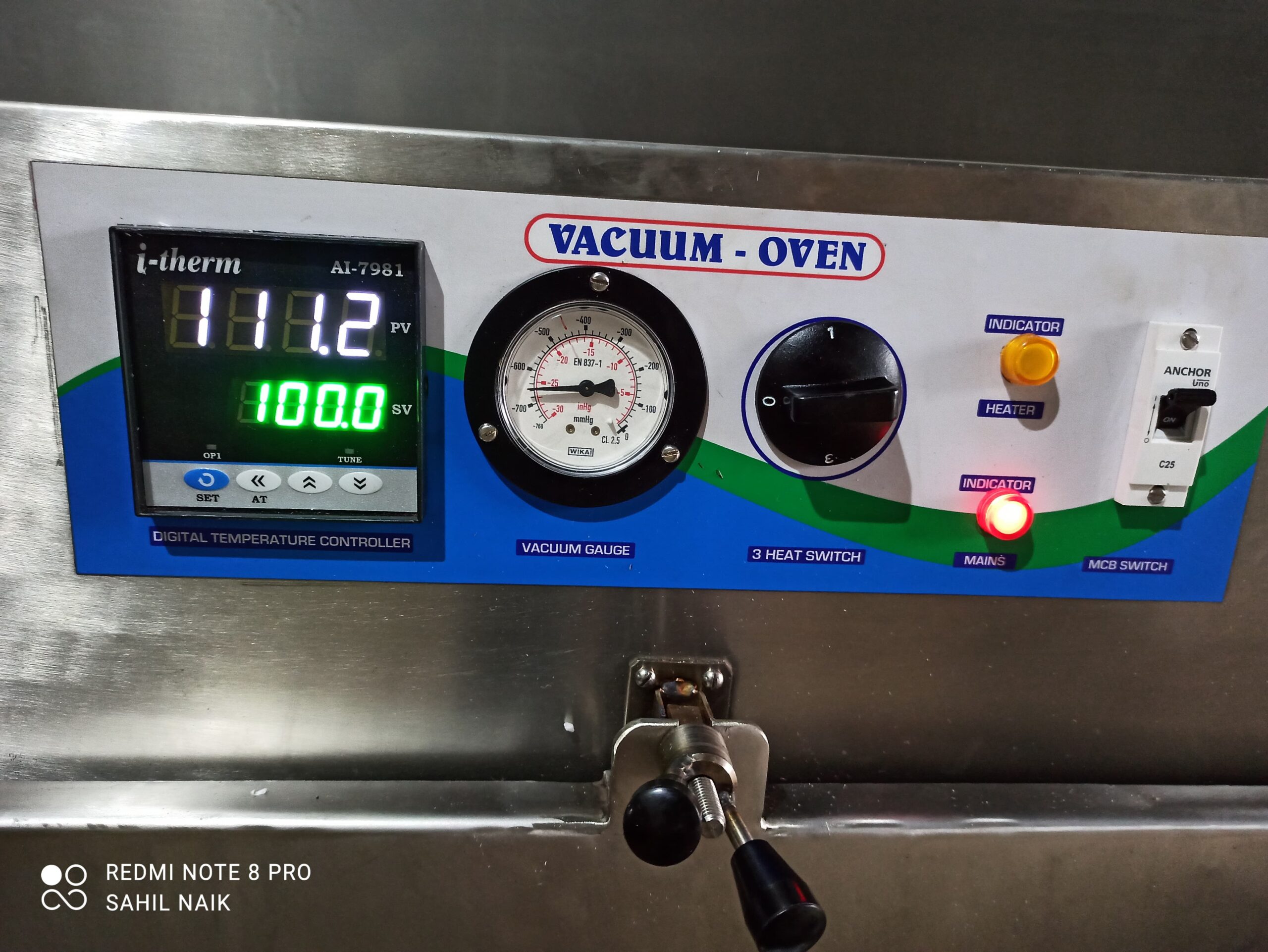

| Temperature controller | Digital PID controllerDisplay of SV & PV |
| Inner chamber | Hermetically welded stainless steel 304 sheet |
| External cabinet | Powder coated GI sheet |
| Door | Solid door with clamp & toughened glass window |
| Gasket | High temperature silicon gasket |
| Shelves | Removable SS shelves |
| Vacuum fittings | Vacuum valve / exhaust valves (Rubber hose) |
