| Dia. x Height | Volume | Watt |
|---|---|---|
| 250 mm x 450 mm | 22 liters | 1 KW |
| 300 mm x 500 mm | 35 liters | 2 KW |
| 350 mm x 550 mm | 50 liters | 3 kw |
| 400 mm x 600 mm | 75 liters | 4 kw |
| 450 mm x 600 mm | 95 liters | 4 kw |
| 450 mm x 750 mm | 120 liters | 5 kw |
| 550 mm x 750 mm | 180 liters | 6 kw |
| 600 mm x 750 mm | 220 liters | 6 kw |

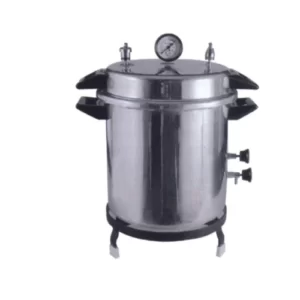

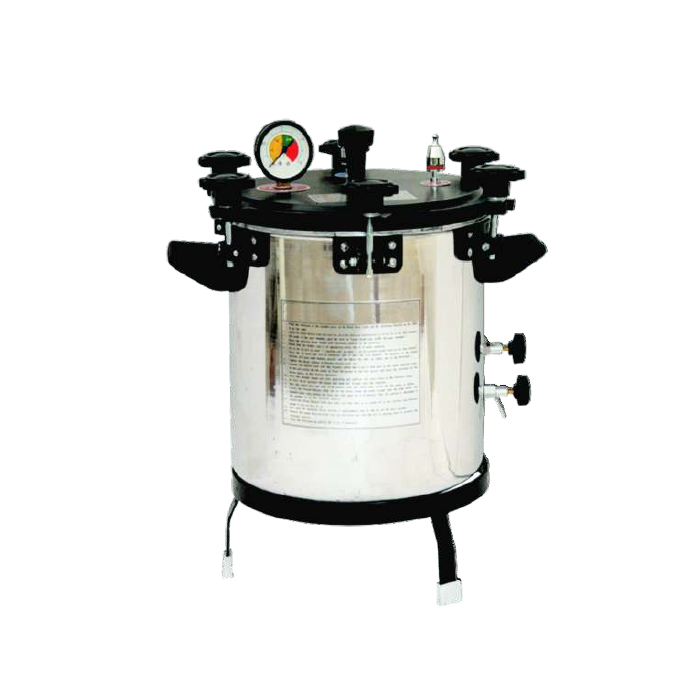

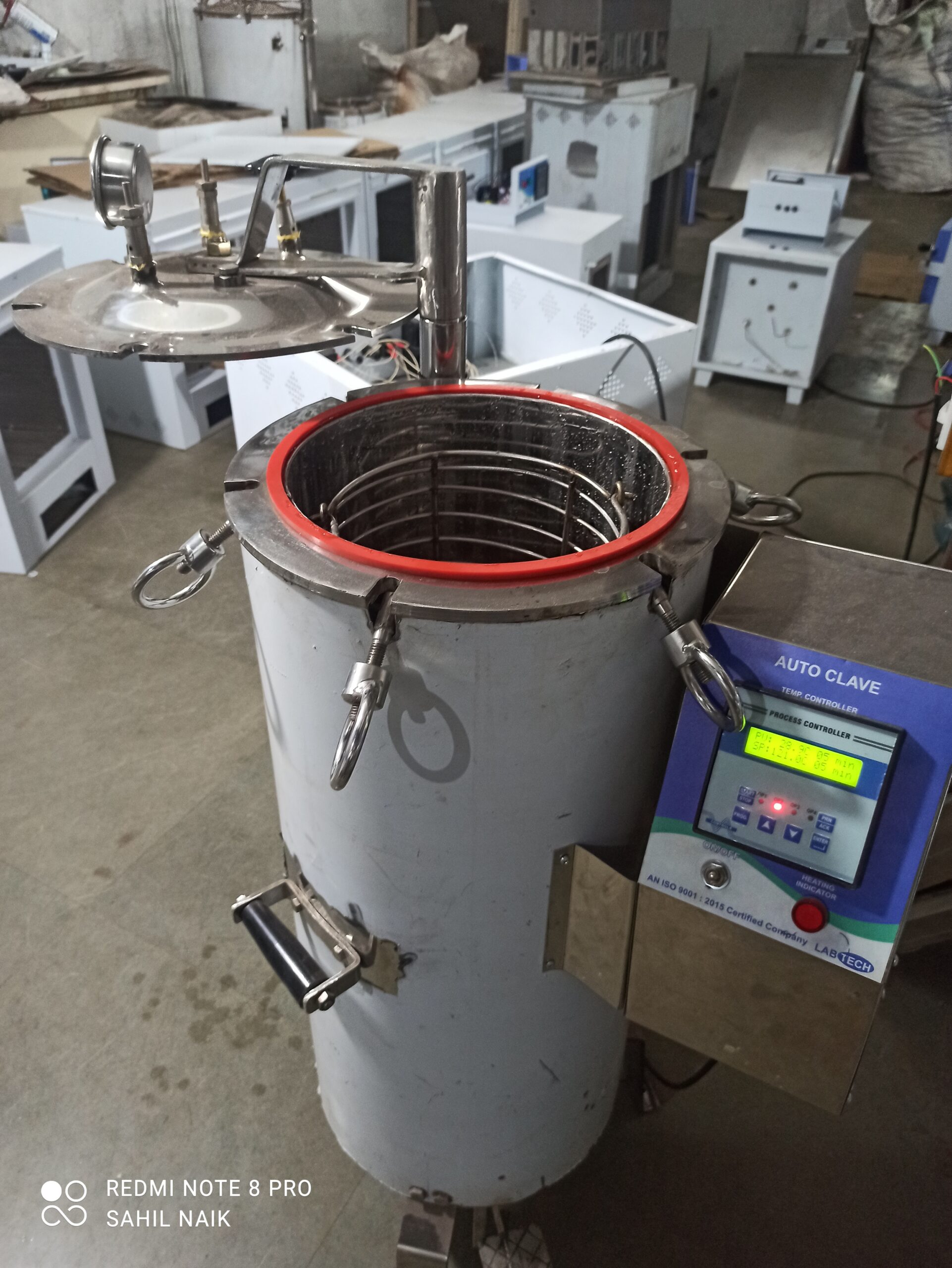

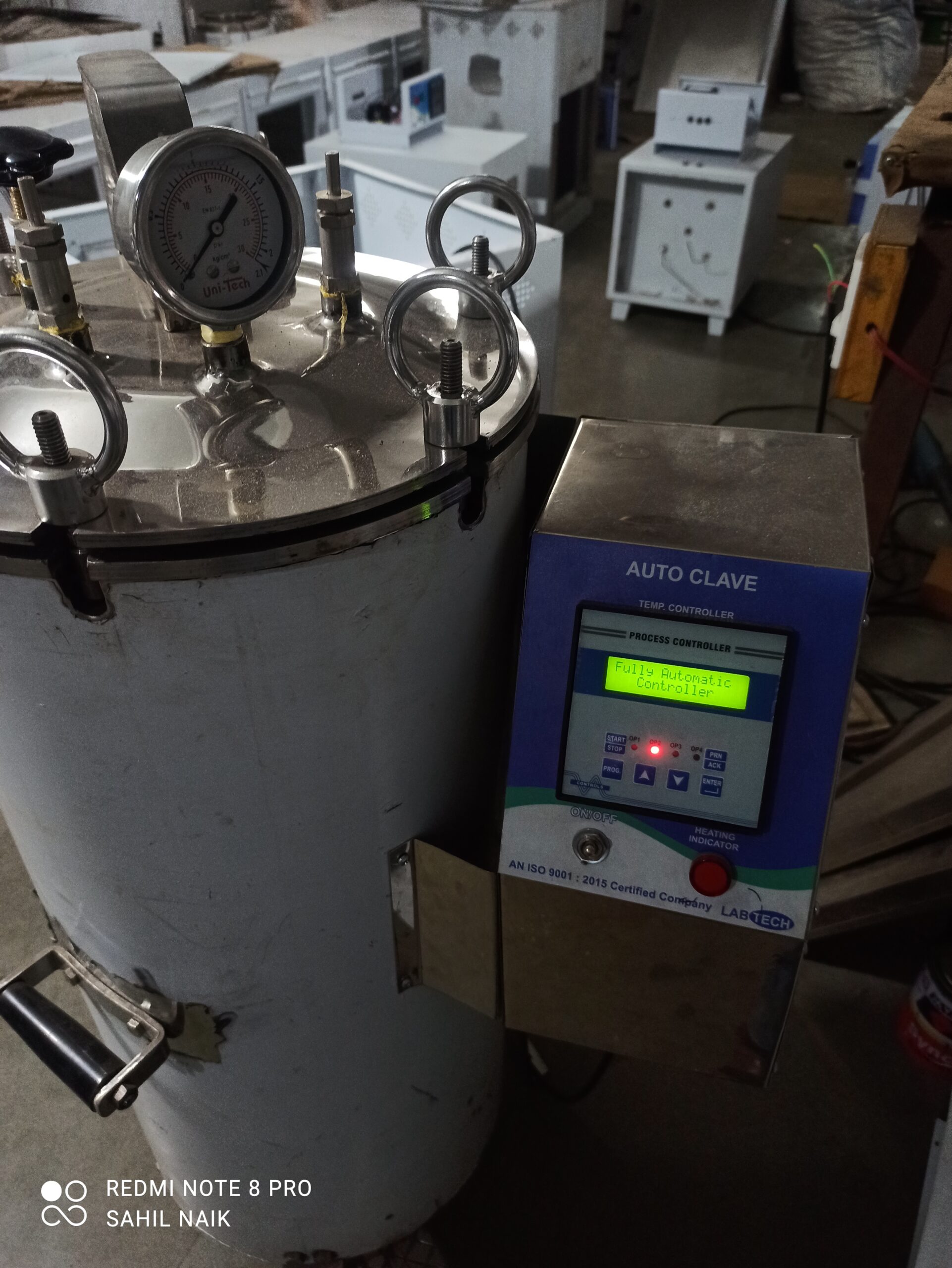

Vertical autoclaves are also known as top loading sterilizers that come in cylindrical shape. These are widely used in hospitals, Operation Theater (OT), microbiology laboratory for sterilization of various medial and cultures. The working of vertical autoclave is simple to understand; to open, a radial locking mechanism is fitted at top of the lid; a foot lever (pedal) is attached at the bottom. User has to press the pedal and lift the lid.
We make various types of vertical autoclave machines as per budget and intended use. Economy models come with powder coated MS exterior and stainless steel interior. Our Deluxe models are double walled vertical autoclaves and made with inner and exterior both of stainless steel; while the Triple Walled models have another chamber and all three walls are made of thick gauge of stainless steel sheets. At Stericox, we make every vertical steam sterilizer following ASME guidelines in order to ensure that they are safe for users and samples.
| Construction | Economy Model | Double Walled Model | Triple Walled Model |
|---|---|---|---|
| MOC Exterior | Painted MS sheet | SS 304 (mirror finish) | SS 304 mirror finish) |
| No. of walls | Two | Two | Three |
| Lid | Polished MS | SS 304 | SS 304 |
| Interior | SS 304 with silicon gasket | SS 304 with silicon gasket | SS 304 with silicon gasket |
| Working Pressure | 15 to 20 psi | 15 to 20 psi | 15 to 20 psi |
| Working Temperature | 121°C to 125°C | 121°C to 125°C | 121°C to 125°C |
| Controller | Auto set to 15psi & 121°C | Auto set to 15psi & 121°C | Auto set to 15psi & 121°C |
| Pressure display | Analog dial gauge | Analog dial gauge | Analog dial gauge |
| Timer | Mechanical timer | Mechanical timer | Mechanical timer |
| Hydraulic tested | Hydraulically Tested up to 40 psi (ASME Guideline) | Hydraulically Tested up to 40 psi (ASME Guideline) | Hydraulically Tested up to 40 psi (ASME Guideline) |
| Basket | Stainless steel basket | Stainless steel basket | Not Required |
| Power supply | 220 Volts 50Hz |
